Cable & Membrane Overview
Product Name

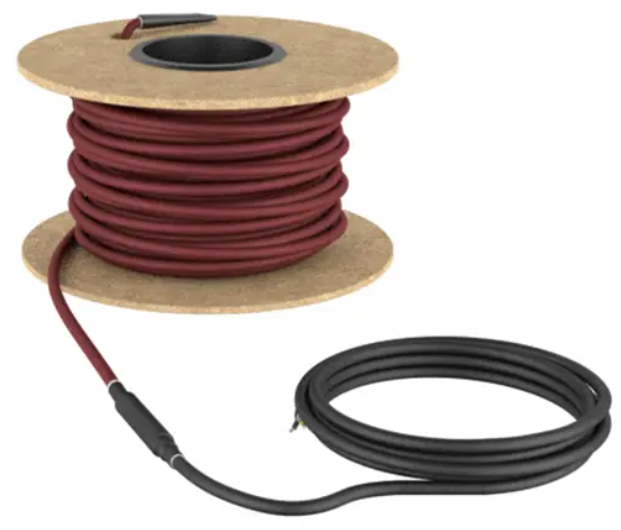

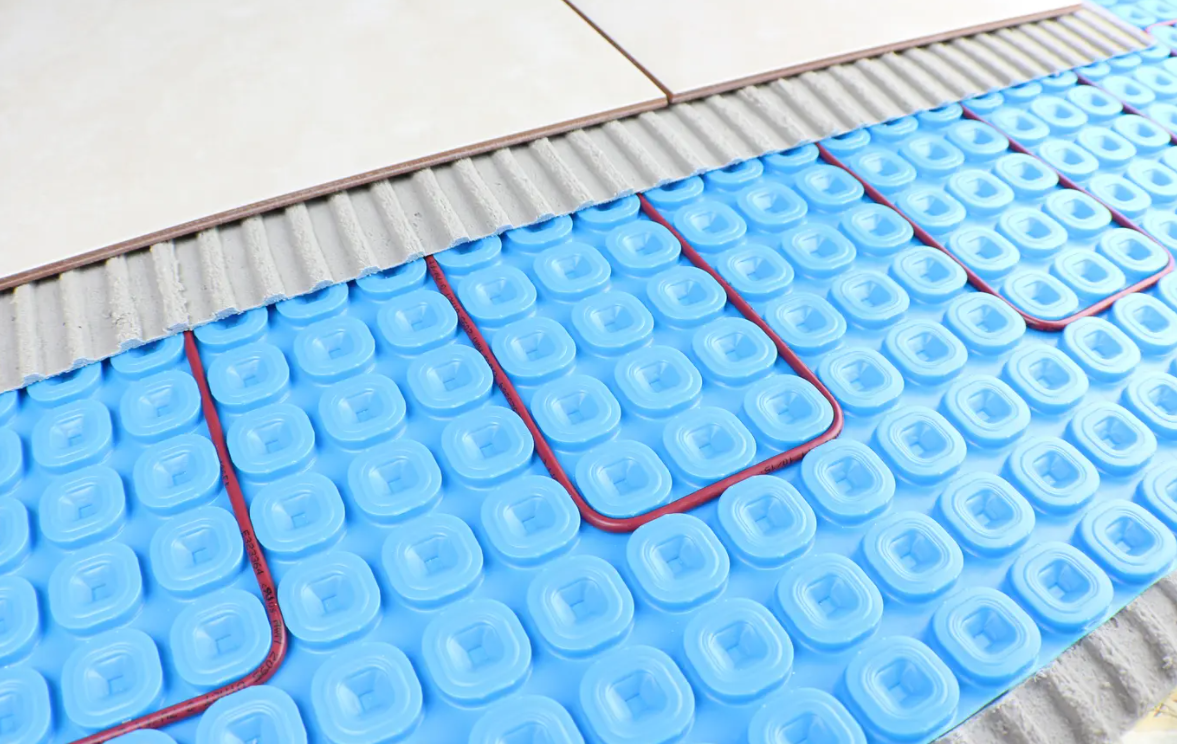

TempZone (3.7w/ft) Cable & Prodeso Membrane
Indoor Use Only
YES
120V Sizes - designed at 3” spacing between 12.4 & 14.1 w/sqft
9, 12, 14, 20, 25, 33, 41, 49, 59, 69, 80, 90, 99, 113 (sqft)
240V Sizes - designed at 3” spacing between 13 & 14.3 w/sqft
16, 18, 21, 26, 32, 42, 52, 63, 73, 83, 94, 104, 114, 135, 155, 175, 194, 225 (sqft)
Max Heat Output
15 watts/sqft
Cable Spacing w/guides
9.5 - 10.6 w/sqft - 4”
12.4 - 14.3 w/sqft - 3”
Cable Spacing w/membrane
11.1 w/sqft - 3 pillar
14.8 w/sqft - 3/2/3 alternate pillar
Cable Guides Included
NO
Self-Leveling Concrete Using Cable Guides
Recommended
Cable Thickness
3/16”
Zero EMF
1.8 mG
Waterproof Cable
YES
Halfway Marker on Cable
YES
Cable Repair Kit Available
NO
Cable Must be Turned After 10’
No; Unlimited Straight Runs
Cold Lead Length
15’
Cable Splice and Sensor Probe Fits without Cutting Membrane
NO
Membrane Rolls Sizes
54 sqft & 162 sqft
Membrane Sheet Sizes
N/A
Membrane Thickness
.22” - 5.5mm
Adjusted Floor Height
Cable w/guides - 1/4”
Cable w/membrane - 1/2”
YES
Waterproof Membrane
Unknown
Self-Leveling Concrete over Membrane
Modified Thinset Approved Above and Below Membrane
Yes, ANSI A118.11
Minimum Tile Size Over Membrane
2”x2” over thinset
YES
UL Approved under Laminate
YES
UL Approved under Luxury Vinyl Tile
YES
UL Approved under Engineered Hardwood
Membrane - Robinson Floor Test - OSB/Plywood w/19.2” O.C Joists - 12”x12” Porcelain
5/5 - Extra Heavy
Membrane - Robinson Floor Test - Concrete - 12”x12” Porcelain
5/5 - Extra Heavy
Membrane Approved for Sound Reduction
NO
Is the Membrane a Thermal Break?
NO
Cable Warranted in Other Membranes
YES
Membrane Warranted with Other Cable
YES
YES, 10 Years - must get approval
Warranty in Effect After Repairs
Cable & Membrane Warranty
